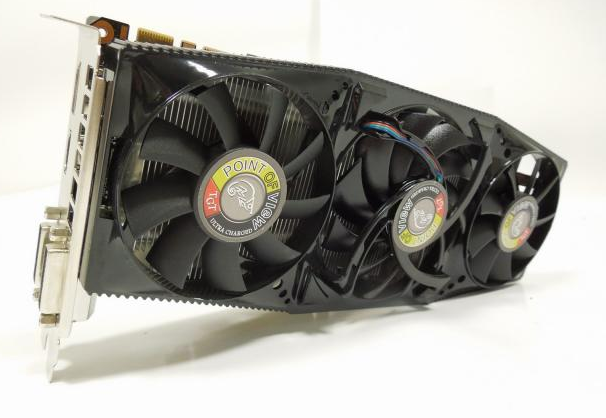

Point of View And TGT Announcing POV/TGT GeForce GTX 680 UltraCharged
Point of View the leading European manufacturer of an exclusive range NVIDIA based 3D processor boards, advanced netbooks as well as fancy 7″ and 10″ Tegra tablet computers and additional enthusiast PC products, announces today that it is first to market with a GeForce GTX 680 3D processor board running at a boost clock of 1176 MHz. The POV/TGT GeForce GTX 680 UltraChargedTM features POV/TGT’s award winning proprietary High-Performance/ Wide-Band-width hardware design, an advanced power management for Auto-Overclocking and triple fan cooling for utmost stability and cooling efficiency.
First independent reviews already published on the net confirm performance and cooling efficiency:
“TGT handpicked only the best chips with low leakage, which should result in top auto-overclocking results. Thermals are also important and GTX 680 Ultra Charged’s cooler keeps GPU temperatures below 70°C – as much as 10°C lower than on the reference GTX 680. GTX 680 Ultra Charged’s Base clock is 1110MHz, Boost is 1176 MHz. As you can see, clocks are up to 1228MHz. It appears as if TGT managed to nail GPU Boost to the highest possible auto-OC clock.”
Source: Sanjin Rados, www.fudzilla.com.
Product Specifications
- NVIDIA GK 104 GPU
- Base Clock 1110 MHz
- Boost Clock 1176 MHz
- 1536 CUDA Cores
- 2048 MB GDDR5 memory
- Memory Interface: 256 bit
- Memory Clock: 6008 MHz
- 400 MHz RAMDAC
- PCI Express x16 3.0 bus Interface
Product Features
- NVIDIA SMX Engine
- NVIDIA GPU Boost
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Supports four concurrent displays: two dual-link DVI connectors, HDMI and Displayport 1.2
- Microsoft DirectX 11.1 with DirectCompute 5.0 support
- NVIDIA CUDA Technology
- NVIDIA PhysX Technology
- OpenCL Support
- OpenGL 4.2 Support
- NVIDIA 2-way, 3-way and 4-way SLI Ready
- NVIDIA 3D-Vision Ready
Connectors
- Two HDCP enabled Dual-Link DVI output connectors, (one DVI-I and one DVI-D) supporting 2560 x 1600 (digital) and 2048 x 1536 (analog)
- One HDMI 1.4a output connector
- One DisplayPort output connector
- One 6-pin and one 8-pin 12V PCI-E power input connectors
Product Dimensions and Weight
- (H x L) 118 mm x 262 mm
- 950 g (1325 g gross weight)
- This product occupies two slots
Accessories
- Users manual
- Driver CD
System Requirements
- PCI-Express or PCI-Express 2.0 or PCI-Express 3.0 motherboard with one free PCI-E x16 slot
- 550 Watts or greater power supply with a minimum of 38 Amps on the 12 Volts rail
- Minimum one 6-pin PCI-Express power connector and one 8-pin PCI-Express power connector
- Microsoft Windows 7 / Vista / XP
Warranty
- 3 Years limited warranty
The POV/TGT GeForce GTX 680 UltraChargedTM is immediately available at an expected street price of around € 570 incl. VAT
For more information visit http://www.pointofview-online.com.
